Voilamart 48V 1500W Rear Electric Bike Conversion kit Ebike Hub Motor Bicycle E bike 26"

Voilamart 48V 1500W Rear Electric Bike Conversion kit Ebike Hub Motor Bicycle E bike 26"

More Views

Voilamart 48V 1500W Rear Electric Bike Conversion kit Ebike Hub Motor Bicycle E bike 26"

Be the first to review this product

【POWERFUL 1500W BRUSHLESS MOTOR】-The 48V 1500W Ebike Rear Wheel Conversion Kit features a powerful brushless gearless hub motor. It runs efficiently and quietly. The max speed can reach 34mph (55km/h) . It universal fits any 26IN bike frame with 5.31IN/135mm rear dropout spacing.
【SAFE & DURABLE】-CE, EN15194 approved, ensures safety and quality. Motor power cut-off function of the brake levers prevent the motor from overheating and saving energy. Smoother bearing & 27mm Magnet Steel used in the Hub Motor, ride further with our Ebike Kit.
【POWER DISPLAY INTEGRATED ON THROTTLE】-The twist throttle ensures speed control is fast and simple, and power display integrated on it, takes less handlebar space. The aluminum alloy double wall rim is durable and stable, it can hold up to 330lbs/150kg.
【Road-legal Ebike Conversion Kit】-Restricted to 750W and 24mph (38km/h) speed by default as a road-legal electric bike conversion kit, but you could also switch into 1500W full power output for off-road mode by simply disconnect the blue cable, would brings 34mph (55km/h) speed.
【PEDAL ASSIST SYSTEM】The PAS function of this e bike conversion kit allows you to switch 3 riding modes between Throttle / PAS / Manual. The suitable riding mode can be switched as needed. Less fatigue and more comfortably, great for long trips. Equipped detailed assembly instruction and video,7 X 24H customer service, help you complete the assembly easily.

* Only free shipping for some areas where is not far away from our warehouse. If the address is too far, the customer service may contact for extra postage!

* This item would send from oversea, please note!!!

Please know that this item will sending out at about Feb.15th due to manufactorer in holiday.

Buy 2 for $656.69 each and save 2%
Buy 3 for $648.69 each and save 3%
Buy 5 for $632.69 each and save 6%
Buy 8 for $599.69 each and save 10%

Availability: In stock

$665.99

Qty:

-OR- -OR-

Product Description
Additional Information
Tags (3)
Reviews (0)
Questions (0)

Product Description

Motor Electrico Para Bicicleta

Voilamart 1500w Ebike Conversion Kit

The Voilamart Electric Rear Wheel Bike Kit is the perfect solution for those who want to convert their regular bike into an electric bike. With a powerful 48V 1500W and 750W super power brushless gearless hub motor, this kit can take you up to 34mph / 55km/h without breaking a sweat!

The Bike Motor Kit is CE and EN15194 approved, ensuring that it meets the highest safety standards.

We offer a variety of convenient and fast options for your daily travel!

Whether you are commuting to work, traveling on vacation or traveling cross-country, you will enjoy the joy of riding！

SPECIFICATIONS

Recommended Tire Width	1.97“(5cm)
Compatible Tire Size	26"
Spokes	Steel, 12G x 2.6mm,36pcs
Disc-Brake	160mm
Rear Dropout	135mm
Wheel Axle	Length 210mm x Dia 10mm

Max Load Capacity	551 lb / 250kg
Net Weight	22lb / 10kg
Recommended Battery Capacity	20Ah
Recommended Battery	48V/35A
Motor Power	1500W
Motor Voltage	48V

Electric Dirt Bike 135mm Dropout Rear Hub Motor Wheel

How to use

Using the Ebike Conversion Kit is easy. Simply install the Rear Hub Motor Wheel Kit onto your bike, connect the battery.

Press the red button on the twist throttle to activate and you're ready to go.

Batteries are not included in our kits, please have them ready and fully charged before use!

The upgraded intelligent motor controller allows you to swap between two power modes, giving you the option of using the full 1500W power or 750W power by a single blue switch wire embedded in the controller

Electric Bike Conversion Kit

Gentle Reminder:

When using the Voilamart Ebike Conversion Kit, it is important to remember that the Ebike Kit is restricted to 750W and 38km/h by default as a road-legal kit.

It is also important to ensure that the battery is fully charged before use, and to follow all safety instructions provided with the Hub Motor Wheel Kit.

Always wear a helmet and other protective gear when riding your DIY Electric Bike, and be aware of your surroundings at all times.

Electric Bicycle Conversion Kit


Battery Level Shows on the Throttle The two Ebike Brake Levers are both "brake and cut-off-power" design, please check both the brake levers is install correctly and return to "unbrake state" if the system can turn on but no power to the wheel.	27mm Magnet Steel produce 1500W Full Power Rare-earth metal magnet are used in the 1500 watt Hub Motor to efficiently produce large power. Road Legal Mode: 750W / 48V; Torque: 45 N.M; Max speed: 24mph / 38 km/h Max Power Mode: 1500W / 48V; Torque: 48 N.M; Max speed: 34mph / 55 km/h	Sine Wave Ebike Controller We recommend riding follow the road legal, please connect the blue cable for road riding in order to limit the output power to 750W. And you can disconnect the blue cable(or riding with the Pedal Assist System,"PAS") and let the hub motor generate the full 1500W power for off-road riding, but this means no speed limit by controller, so don't forget to check and re-connect the blue cable before road riding.

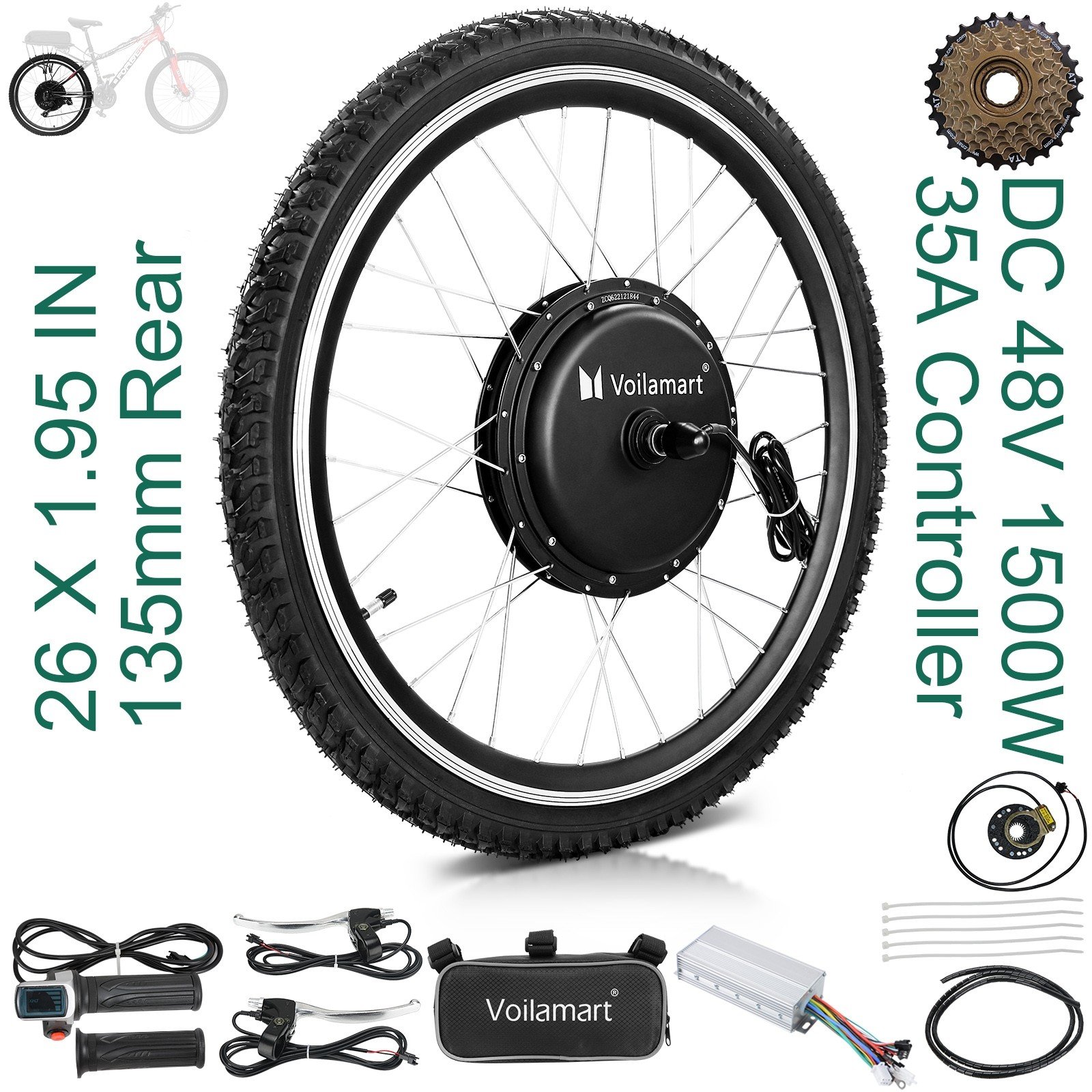

Ebike Rear Hub Motor Wheel Kit Including: Rear Wheel(of 7 speed sprocket and 2mm freewheel spacer), Motor Controller, Controller Bag, Pedal Assist Crank Sensor, One Pair of Brake Handles and Twist Throttle, Cable Ties & Plastic Coil, Manual. Note: Battery not included Please put the freewheel spacer to the thread before install the freewheel!	48V 1500W Ebike Conversion Kit Allow you to swap two power modes between the Full 1500W Power or Road Leagle 750W power by a single blue cable is embedded in controller. (Only for Twist Throttle)	Package Includes 1x Brushless Gearless Motor Rear Wheel 1x Intelligent Motor Controller 1x Pedal Assist Crank Sensor 1x Cable Ties & Plastic Coil 1x Pair of Handle Bars (included Twist Throttle) 1x Controller Bag 1x Pair of Brake Handles 1x 7 Speed Freewheel 1x 35.0 / 41.6mm Dia X 2mm thick Freewheel Spacer 1x Manual
