Voilamart Electric Bicycle Kit 26" Front Wheel 48V 1500W E-Bike Conversion Kit, Cycling Hub Motor with Intelligent Controller and PAS System for Road Bike(Without Battery)

Voilamart Electric Bicycle Kit 26" Front Wheel 48V 1500W E-Bike Conversion Kit, Cycling Hub Motor with Intelligent Controller and PAS System for Road Bike(Without Battery)

More Views

Voilamart Electric Bicycle Kit 26" Front Wheel 48V 1500W E-Bike Conversion Kit, Cycling Hub Motor with Intelligent Controller and PAS System for Road Bike(Without Battery)

Be the first to review this product

Ship from China

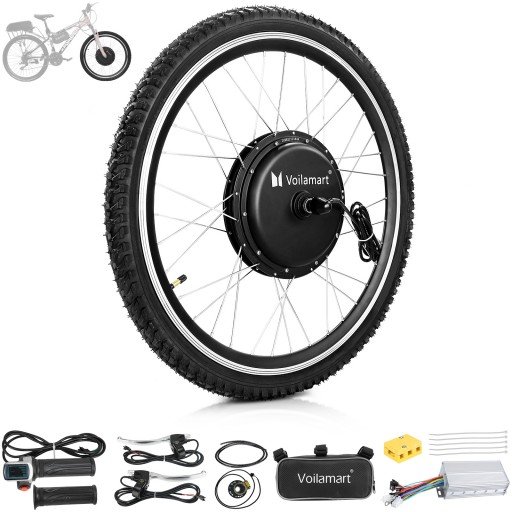

48V 1500W Front Hub Motor Wheel kit, fits with 26in 100mm front dropout

Battery not include in this kit

Contains Tube & Tire

Please know that this item will sending out at about Feb.15th due to manufactorer in holiday.

Availability: In stock

$752.69

Qty:

-OR- -OR-

Product Description
Additional Information
Tags (4)
Reviews (0)
Questions (0)

Product Description

Voilamart 48V 1500W Bike Front Wheel

Why to turn a traditional bike into an Ebike for easier riding?

First of all, turning your bike into E-bike makes your commute ride easier by not sweating from exercise and getting your clothes wet and preventing you getting cold, while avoiding the odor that comes with sweating.

Second, it makes keeping up with your fellow riders easier during cycling trips. The Electric Hub Motor Wheel Kit mounted on your bike allows you to ride without missing out on the beautiful scenery along the way, and it helps you ride better whether you are a novice cyclist or an ex-athlete.

What's more, it offers a way to travel with a much lower carbon footprint, all you need to do is modify your bike and equip it with a rechargeable battery, and it will help you get into a way to travel with a much lower carbon footprint.

And of cause, this powerful Electric Bicycle Conversion Kit would helps you to carrying more goods easier than with a original bike.

Voilamart Urban Bike Front Wheel

Fitment of this Ebike Conversion Kit

Step 1, Remove the origin wheel on your bike and fix the hub motor wheel onto bike, let the motor cable outside the wheel area(there might have to install a freewheel to the hub if it's a rear wheel kit);

Step 2, Remove the handle bar case and the brake handles, install and fix the LCD Display Meter(if it's a type contains), ebike brake handles and the throttle grips;

Step 3, Install the PAS to the bottom bracket (some type of PAS would need to remove the crank for install) of your bike;

Step 4, Fix the controller bag to your bike frame;

Step 5, Connect the wires between parts and controller;

Step 6, Connect the power cord between controller and the battery(battery is not includes in the kit and you have to prepare or purchase separately), and check if the kit can work normally;

Step 7, fix the wires with the cable ties & plastic coil for avoiding them impeding riding

Step 8, Put the controller into the controller bag; Done!

1500W Hub Motor Wheel Kit


48V 1500W Super Power Brushless Gearless Hub Motor Rare-earth metal magnets THICKS UP TO 27MM, which are used to built this Electric Bike Front Hub Motor to efficiently produce STRONG Power, the brake disc base on the hub motor shell make disc brake awailable for you.	Sin-wave Ebike Controller Allow you to swap two power modes between the Full 1500W Power or Road Leagle 750W power by a single blue cable is embedded in controller. (Only for Twist Throttle) We recommend riding follow the road legal, please connect the blue cable for road riding in order to limit the output power to 750W. And you can disconnect the blue cable(or riding with the Pedal Assist System,"PAS") and let the hub motor generate the full 1500W power for off-road riding, but this means no speed limit by controller, so don't forget to check and re-connect the blue cable before road riding.	Twist Throttle for Electric Bicycle The twist throttle design for electric bike has an integrated battery power display and on/off button, a minimalist design that brings the handlebar a more organized look after modify, yet keeps the status of your DIY E-bike in front of you.	Aluminum Alloy Double-wall Rim, Tire & Tube includes 36 Whole Double Wall Rim and 36Pcs x 12G x 2.6mm Steal Spokes makes the max load of this E-bike Rear Wheel up to 200 KG! High quality trail bike tire and tube ( 26 x 1.95 inches ) includes in the package and awailable makes your urban or country riding easier, and you can also change to other 26" tires as you like.

Electric Bike Front Hub Motor Wheel Kit


	The two Ebike Brake Levers are both "brake and cut-off-power" design, please check both the brake levers is install correctly and return to "unbrake state" if the system can turn on but no power to the wheel.	1500W Hub Motor
