Voilamart 27.5" 48V Electric Bicycle Conversion Kit 100 Front Hub Motor Wheel Kit E-Bike Conversion Kit with Intelligent Controller PAS System (EBV-27I1000WFNA)

Voilamart 27.5" 48V Electric Bicycle Conversion Kit 100 Front Hub Motor Wheel Kit E-Bike Conversion Kit with Intelligent Controller PAS System (EBV-27I1000WFNA)

More Views

Voilamart 27.5" 48V Electric Bicycle Conversion Kit 100 Front Hub Motor Wheel Kit E-Bike Conversion Kit with Intelligent Controller PAS System (EBV-27I1000WFNA)

Be the first to review this product

【POWERFUL 1500W BRUSHLESS MOTOR】-The 48V 1000W Ebike Front Wheel Conversion Kit features a powerful brushless gearless hub motor. It runs efficiently and quietly. The max speed can reach 34mph (55km/h). It universal fits any 27.5IN bike frame with 3.94IN/100mm front dropout spacing.
【SAFE & DURABLE】-CE, EN15194 approved, ensures safety and quality. Motor power cut-off function of the brake levers prevent the motor from overheating and saving energy. Smoother bearing & 27mm Magnet Steel used in the Hub Motor, ride further with our Ebike Kit.
【LCD Display Riding Information】-Shows all riding info front of you: riding speed, battery power, PAS level, etc. The twist throttle ensures speed control is fast and simple. The aluminum alloy double wall rim is durable and stable, it can hold up to 330lbs/150kg.
【Road-legal Ebike Conversion Kit】-Restricted to 750W and 24mph (38km/h) speed by default as a road-legal electric bike conversion kit, but you could also switch into 1500W full power output for off-road mode by simply disconnect the blue cable, would brings 34mph (55km/h) speed.
【PEDAL ASSIST SYSTEM】The PAS function of this e bike conversion kit allows you to switch 3 riding modes between Throttle / PAS / Manual. The suitable riding mode can be switched as needed. Less fatigue and more comfortably, great for long trips. Equipped detailed assembly instruction and video,7 X 24H customer service, help you complete the assembly easily.

This product would ship from China and would takes longer time to deliver.

Please know that this item will sending out at about Feb.15th due to manufactorer in holiday.

Availability: In stock

$439.79

Qty:

-OR- -OR-

Product Description
Additional Information
Tags (4)
Reviews (0)
Questions (0)

Product Description

The 27 Inch Front Ebike Conversion Kit Key feature:
* 48V 1000 watt super power brushless gearless hub motor
* Restricted to 750W by default as a road-legal Ebike Kit
* Nylon tire & alloy rim & stainless steel spoke
* Rare-earth metal magnet are used in the motor to efficiently produce large power
* Aluminum alloy powerful controller guarantee big current supply
* Adjustable 5 level intelligent pedal assist with twist throttle
* LCD display shows battery level and pedal assistance settings
* Brake Levers cut off the power supply to the motor safely
* Crank speed sensor for pedal assist

Upgraded Intelligent Motor Controller:
* Allow you to swap two power modes between the full 1000W power or 750W power by a single blue switch wire is embedded in controller. (Only for Throttle Mode Riding)
* Still remain the full 1000W power with no speed control.(Only for Pedal Assist System,"PAS")

Notes:
1. Battery and charger are not included in package.
2. The system requires a 48 Volt electrokinetic cell battery for ebike with a nominal capacity not less than 13Ah.
3. Press the "M" button on the LCD Meter to start the system.
Caution: For your Safety, Please turn off the battery before connecting the Controller！

Specification:
Wheel type: 27.5IN Front Hub Motor Wheel
Motor: 1000 watt brushless gearless hub motor
Torque: 45 N.M
Tire: Nylon
Rim: Alloy double wall 36 hole
Spokes: Steel, 12G x 2.6mm X 36Pcs
Wheel Axle: Length 210mm x Dia10mm
Max load capacity: 330-440lb / 150-200kg
Net weight: 22lb / 10kg

Mode 1, Road-legal Riding Power: 750W / 48V; Max speed: 24mph / 38 km/h
Mode 2, Off-road Riding Power: 1000W / 48V; Max speed: 28mph / 45 km/h

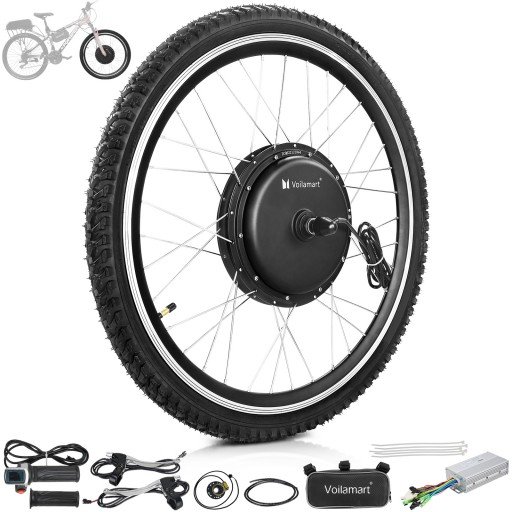

Package Includes:
1x Brushless Gearless Motor Front Wheel
1x Intelligent Motor Controller & Controller Bag
1x LCD Meter
1x Pedal Assist Crank Sensor
1x Cable Ties & Plastic Coil
1x Pair of Handle Bars (included Twist Throttle)
1x Pair of Brake Handles
1x Manual

Technical Details

Bike Type	‎Electric Bike
Age Range (Description)	‎Adult
Brand	‎Voilamart
Number of Speeds	‎7
Color	‎Black
Wheel Size	‎27.5 Inches
Frame Material	‎Aluminum
Suspension Type	‎Bi-directional
Special Feature	‎For 27.5IN Bike
Included Components	‎1000 watt hub motor wheel
Size	‎27.5"
Brake Style	‎Linear Pull, Disc, Caliper, Cantilever
Item Weight	‎13.1 Kilograms
Voltage	‎48 Volts
Model Name	‎EBV-27I1500WRCA
Power Source	‎Ebike Battery
Wattage	‎1000 watts
Maximum Weight Recommendation	‎200 Kilograms
Assembly Required	‎Yes
Number of Handles	‎2
Manufacturer	‎Voilamart
Item Package Dimensions L x W x H	‎25.59 x 25.2 x 9.84 inches
Brand Name	‎Voilamart
Warranty Description	‎6 months warranty by voilamart
Material	‎Aluminum
