Voilamart Waterproof 48V / 52V 1500W 26IN Rear 135mm Electric Bike Conversion kit Ebike Hub Motor for Turn 26" Bicycle into Ebike

More Views

Voilamart Waterproof 48V / 52V 1500W 26IN Rear 135mm Electric Bike Conversion kit Ebike Hub Motor for Turn 26" Bicycle into Ebike

Be the first to review this product

【POWERFUL BRUSHLESS REAR HUB MOTOR】-The Voilamart Waterproof Ebike Conversion Kit 48V 1500W Rear Hub Motor Wheel features a powerful brushless gearless hub motor, 30mm Magnet Steel inside brings 34mph (55km/h) max speed. This Waterproof Electric Bicycle Conversion Kit universal fits any 26IN bike with 5.31IN/135mm rear dropout spacing.
【SAFE & DURABLE】-CE, EN15194 approved, Restricted to 750W and 24mph (38km/h) speed by default as a Road-legal Ebike Kit, but still could switch into 1500 Watt full power for off-road riding by disconnect the road-legal cable. Brake & cut-off power design, Dia 1.73IN (44mm) Brake Disc Base fits dual size disc, ensures quality & riding safety. Detailed assembly instruction and video equipped.

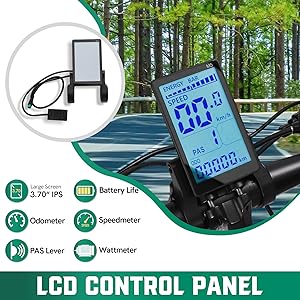

【M5 LCD Display Riding Information】 -Shows all riding info front of you: battery power, riding speed, PAS level, mileage & etc., it could also shows the error code while any problem brake in & help to locate it and fix it. The Waterproof Thumb Throttle ensures speed control is fast and simple. Aluminum alloy double wall rim & 36Pcs 12G x 2.6mm Steel Spoke, 440LB (200KG) Max Load awailable.
【Waterproof Brake Sensor Upgraded】 -The Waterproof Ebike Brake Sensor replaces the traditional electric bicycle brake handle, no longer need to replace the one on your bike you're used to, and make this Ebike Hub Motor Wheel Kit can fit with both Linear Pull & Hydraulic Disc Brake. Stronger controller can fits 48~52 volt power, ride further, faster with our Ebike Kit.
【Half-separate Type 12 Magnet Pedal Assist Sensor Includes】 -Half-separate design magnet plate make it easier install the PAS to your bike and no longer need to remove the crank arm! 12 Magnet on the plate make it respone faster than others. Throttle / PAS / Manual, 3 riding modes awailable, less fatigue and more comfortably. 2Pcs Set Torque Arm (L + R) in package, no need to purchase separatly.

* Only free shipping for some areas where is not far away from our warehouse. If the address is too far, the customer service may contact for extra postage!

* This item is only available in US, it can't be sent to any other countries!!!

Availability: Out of stock

$533.99

Product Description
Additional Information
Tags (3)
Reviews (0)
Questions (0)

Product Description

This Rear Hub Motor Wheel Kit fits for turn 26IN pedal bike into Ebike

1, Please check the Original Bike Size before purchasing.

For confirm the size there're 2 way:

1.1, Check the tire size, it would usually printed on the side of the tire like >>26 x 1.75"<< or >>26 x 1.95"<<, the fronter number is the bike size and the rear number is tire width of original tire;

1.2, Measure the length between the wheel axel to the tire top, it's the radius of wheel, times 2 would be the bike size.

2, The rear wheel kit COULDN'T use as front wheel, and the front wheel kit COULDN'T use as rear wheel, or it would make your bike frame or front fork deformed and hard to fix it.

Voilamart 1500 Watt Waterproof Ebike Conversion Kit

1500 Watt Rear Hub Motor Wheel

* CE, EN15194 approved * Restricted to 750W and 38km/h by default as a road-legal kit

* Rare-earth metal magnet are used in the motor to efficiently produce large power for off-road

* Aluminum alloy powerful controller provide big current supply

* Nylon tire & alloy rim & 36 Pcs stainless steel spokes

* Brake Levers cut off the power supply to the motor safely

* Crank speed sensor for pedal assist

Upgraded Intelligent Motor Controller:

* Allow you to swap two power modes between the full 1200W power or 750W power by a single blue switch wire is embedded in controller. (Only for Twist Throttle)

* Still remain the full 1000W power with no speed control.(Only for Pedal Assist System,"PAS")

Voilamart 1500W Waterproof Electric bicycle Conversion Kit

Voilamart 1500 Watt Electric bike Conversion Kit

Note:

1. Battery and charger NOT Contains.

2. The US regulations dictate that a kit must not exceed the rated power of 750W to be road-legal.

3. The system requires a 48 Volt electrokinetic cell battery with a nominal capacity not less than 11.6Ah.

Caution: For your Safety, Please turn off the battery before connecting the Controller！

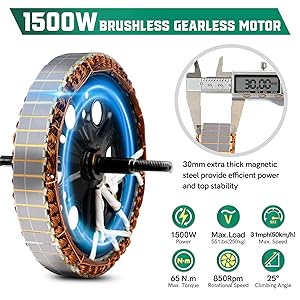

1500 Watt Waterproof Electric bike Conversion Kit 48 Volt electrokinetic cell battery with a nominal capacity not less than 14.5Ah is required. The efficiency of this Waterproof Hub Motor Wheel Conversion Kit for electric bicycle not less than 82%, would much higher but less wear than other type (mid drive or friction type).	M5 Ebike LCD Display Speed, PAS level, Battery Status, Cycling Mileage shows directly front of you, know more about your DIY Ebike's state. Long press the M button & up button of the M5 LCD Meter, the speed display would switch between KMS and MPH, the riding speed would display as the way you like. Shows error code while any problem happens, locate and fix faster.	1500 Watt Waterproof Ebike Conversion Kit Rare-earth metal magnet are used in the 1500 Watt Hub Motor to efficiently produce large power. Road Legal Mode: 750W / 48V; Torque: 45 N.M; Max speed: 24mph / 38 km/h Max Power Mode: 1500W / 48V; Torque: 48 N.M; Max speed: 34mph / 55 km/h

52V 1500W Ebike Hub Motor Rear Wheel

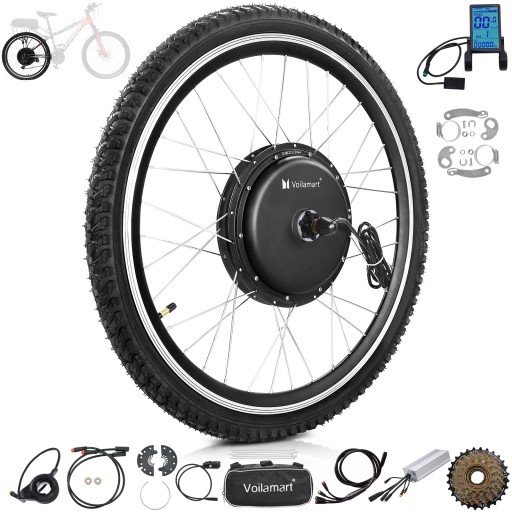

Electrify your bike Universal fits 44mm diagonal screw hole 6-bolt brake disc, produce strong braking power for your riding safety.	Waterproof Ebike Conversion Kit Waterproof Round Julet Plug brings waterproof and dust resistant. The Julet Connectors for the different function cables are in different colours, so you just need to connect them according to the same colour, further reducing the difficulty of installation. There are corresponding arrows on the connector, please point the two arrows towards each other before pluging.	48V 1500W Ebike Conversion Kit Including: Rear Wheel(of 7 speed sprocket and 2mm freewheel spacer), Motor Controller, Controller Bag, Pedal Assist Crank Sensor, One Pair of Brake Handles and Twist Throttle, Cable Ties & Plastic Coil, Manual. Note: Please put the freewheel spacer to the thread before install the freewheel!

Technical Details

Brand	‎Voilamart
Material	‎Aluminum
Color	‎Rear Ebike Wheel
Brake Style	‎Linear Pull, Disc, Caliper, Hydraulic Brake, Cantilever
Bike Type	‎Electric Bike, Mountain Bike
Wheel Size	‎26 Inches
Rim Size	‎22.65 Inches
Rim Width	‎0.75 Inches
Item Weight	‎13.1 Kilograms
Number of Spokes	‎36
Wheel Backspacing	‎13 Inches
Maximum Weight Recommendation	‎200 Kilograms
Manufacturer	‎Voilamart
Item Package Dimensions L x W x H	‎24.8 x 24.02 x 9.84 inches
Package Weight	‎12.6 Kilograms
Brand Name	‎Voilamart
Warranty Description	‎6 Months Warranty by Voilamart
Model Name	‎IP65WP48V1500WEBW
Suggested Users	‎unisex-adult
Part Number	‎IP65WP48V1500WEBW
Style	‎Urban
Included Components	‎1500W waterproof Electric Bike Hub Motor Wheel, Half Devide Type Pedal Assist Crank Sensor Juliet Plug Waterproof Type, Ebike Controller & controller bag, Ebike LCD Display Meter & Waterproof Round Julet Connector Cable, Ebike Brake lever & Thumb Throttle
Size	‎26"
